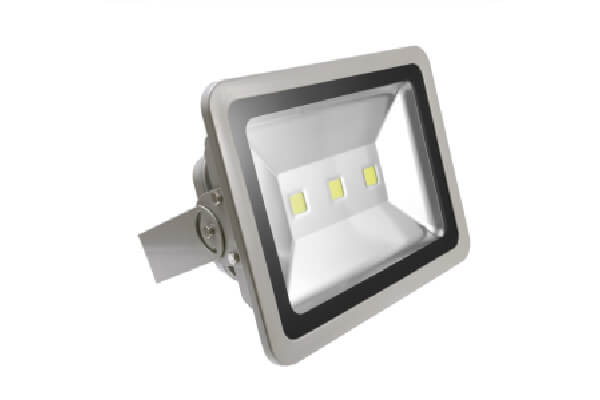

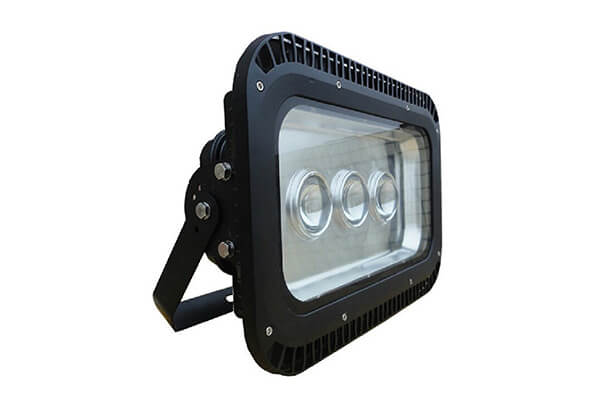

Flood Light Series

Robust & High Quality Flood Lights, fitted with high grade optics and accessories. Ideal for warehouses, factories, roadways, parks, workshops, car parks, mines and other open spaces.

Convenient & Easy to Install. Can Highlight open spaces and adjusted as per the angle required.



  • Customized Fixtures with variation in weight can be provided
  • Flood Lights can be made with SMD & COB LEDs

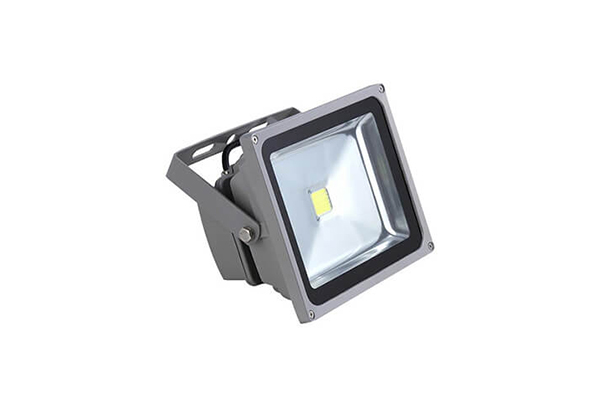

FL-30
Power: 30~60W
Dimensions (mm): 232*284
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 140
PCS Size (mm): ∅N/A
PCB Area (mm): 175*140
Driver Box (mm): 155*90*H35
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 1.1 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

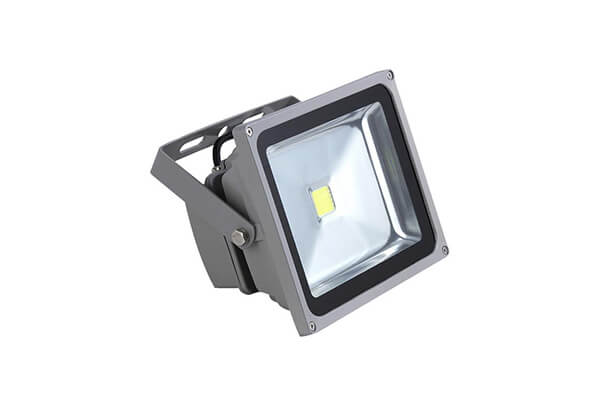

FL-50
Power: 50~100W
Dimensions (mm): 280*230
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 140
PCS Size (mm): ∅N/A
PCB Area (mm): 225*180
Driver Box (mm): 155*90*H35
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 2.00 kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

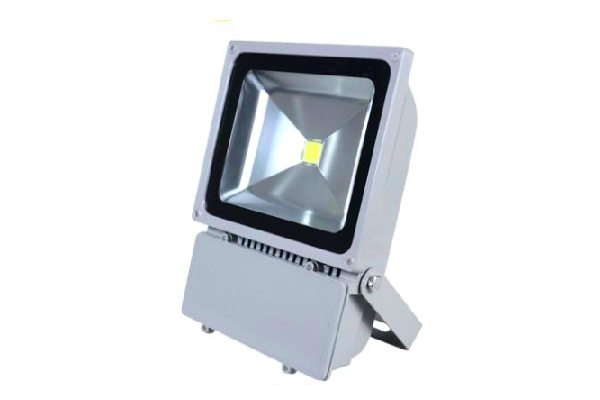

FL-70
Power: 70~120W
Dimensions (mm): 355*280
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 100
PCS Size (mm): --
PCB Area (mm): ∅N/A
Driver Box (mm): 175*85*H40
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 3.10 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

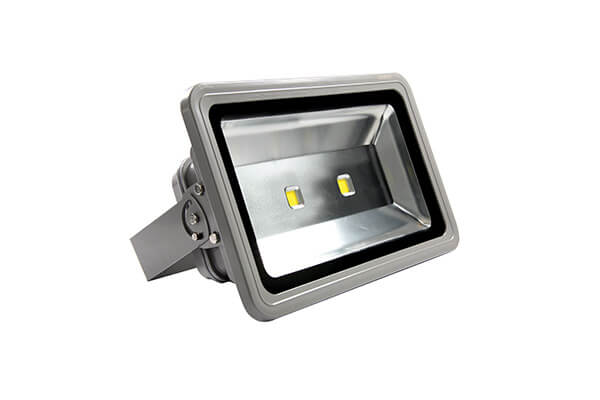

FL-120
Power: 120~160W
Dimensions (mm): 380*280
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 170
PCS Size (mm): ∅N/A
PCB Area (mm): 305*215
Driver Box (mm): 200*140*H50
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 3.60 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

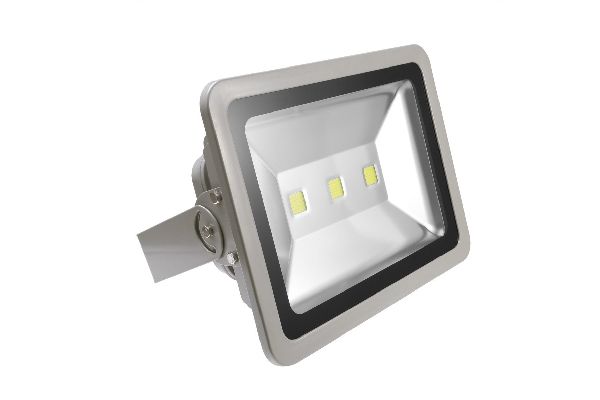

FL-150
Power: 150~200W
Dimensions (mm): 440*323
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 170
PCS Size (mm): ∅N/A
PCB Area (mm): 340*240
Driver Box (mm): 230*165*H50
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 5.50/6.50 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

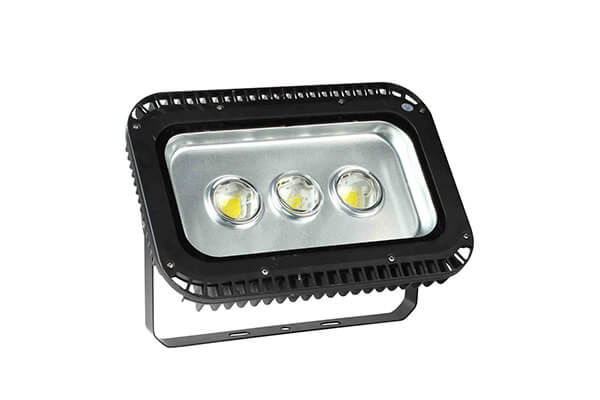

FL-180
Power: 180~210W
Dimensions (mm): 460*320
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 155
PCS Size (mm): ∅N/A
PCB Area (mm): 380*240
Driver Box (mm): 245*160*H55
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 7.50 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium

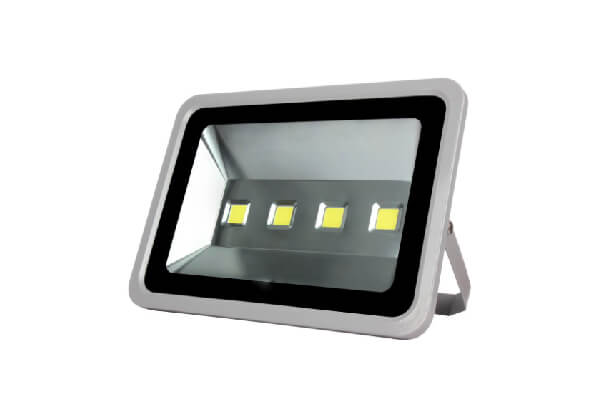

FL-200
Power: 200~300W
Dimensions (mm): 470*325
Outer (mm): N/A
Cut Out (mm): ∅N/A
Height (mm): 170
PCS Size (mm): ∅N/A
PCB Area (mm): 375*240
Driver Box (mm): 240*175*H55
IP Protection : IP 66
Lamp Shade (mm): ∅N/A
Heat Sink (mm): ∅N/A
Beam Angle: N/A○
Finishing: Grey
Weight: 7.60 Kg
COB Size (mm): N/A
LES (mm): ∅N/A
Base Type: N/A
Material : Die Cast Aluminium
