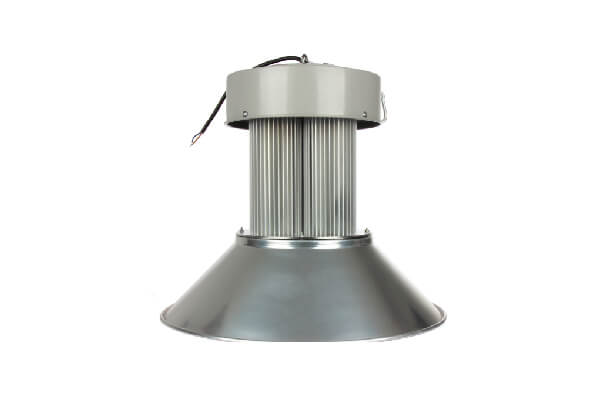

Highbay Series

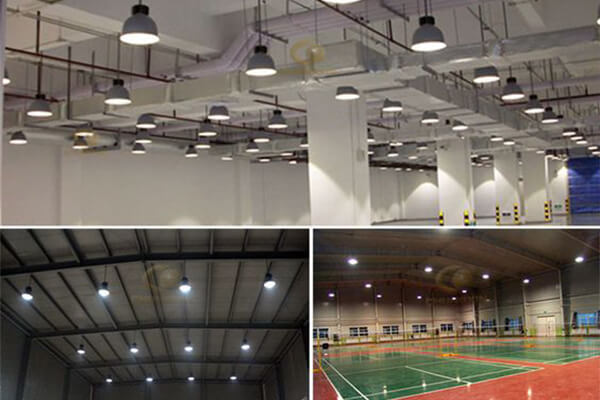

Highbay Lights, fitted with high grade optics and accessories. Ideal for warehouses, factories, workshops, underground car parks, mines etc.

Convenient & Easy to Install. Can Highlight spaces with extremely high ceiling hights with help of adjustable hook and chain.



  • Customized Fixtures with variation in heatsink heights can be provided

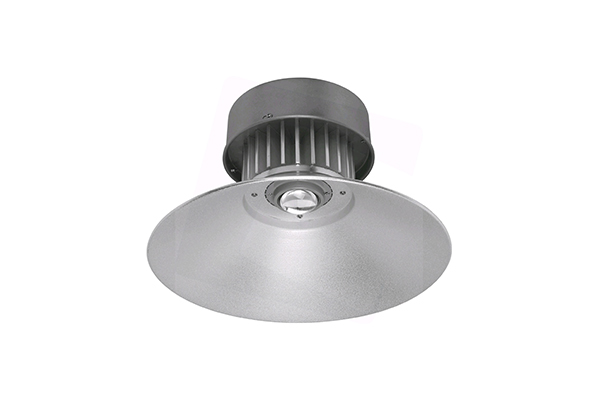

High Bay 50W
Power: 50~70W
Dimensions (mm): ∅N/A
Outer (mm): ∅N/A
Cut Out (mm): ∅N/A
Height (mm): N/A
PCS Size (mm): ∅N/A
PCB Area (mm): ∅N/A
Driver Box (mm): 210*H70
IP Protection : N/A
Lamp Shade (mm): ∅410*H105
Heat Sink (mm): ∅160*H70
Beam Angle: 60○
Finishing: Chrome
Weight: 2.10 Kg
COB Size (mm): 19*19/28*28
LES (mm): ∅17/22
Base Type: N/A
Material : Aluminium Extrusion
High Bay 100W
Power: 100~120W
Dimensions (mm): ∅N/A
Outer (mm): ∅N/A
Cut Out (mm): ∅N/A
Height (mm): N/A
PCS Size (mm): ∅N/A
PCB Area (mm): ∅N/A
Driver Box (mm): 210*H70
IP Protection : N/A
Lamp Shade (mm): ∅410*H105
Heat Sink (mm): ∅160*H140
Beam Angle: 60○
Finishing: Chrome
Weight: 3.00 kg
COB Size (mm): 19*19/28*28
LES (mm): ∅17/22
Base Type: N/A
Material : Aluminium Extrusion

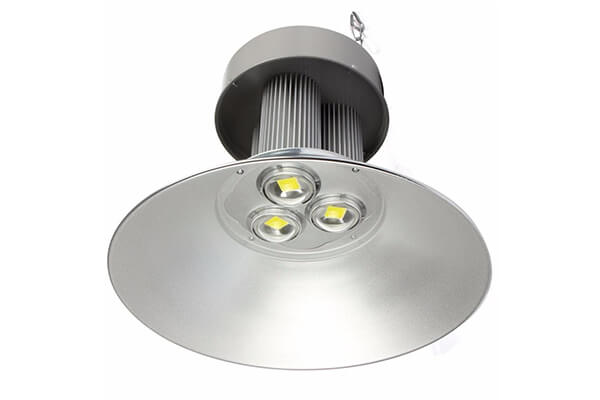

High Bay 150W
Power: 150~180W
Dimensions (mm): ∅N/A
Outer (mm): ∅N/A
Cut Out (mm): ∅N/A
Height (mm): N/A
PCS Size (mm): ∅N/A
PCB Area (mm): ∅N/A
Driver Box (mm): 240*H70
IP Protection : N/A
Lamp Shade (mm): ∅500*H135
Heat Sink (mm): ∅240*H180
Beam Angle: 60○
Finishing: Chrome
Weight: 4.00 Kg
COB Size (mm): 19*19/28*28
LES (mm): ∅17/22
Base Type: N/A
Material : Aluminium Extrusion

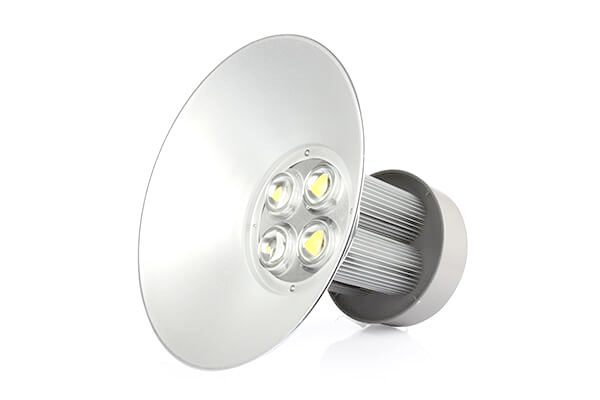

High Bay 200W
Power: 200-240W
Dimensions (mm): ∅N/A
Outer (mm): ∅N/A
Cut Out (mm): ∅N/A
Height (mm): N/A
PCS Size (mm): ∅N/A
PCB Area (mm): ∅N/A
Driver Box (mm): 240*H70
IP Protection : N/A
Lamp Shade (mm): ∅500*H135
Heat Sink (mm): ∅260*H180
Beam Angle: 60○
Finishing: Chrome
Weight: 5.00 Kg
COB Size (mm): 19*19/28*28
LES (mm): ∅17/22
Base Type: N/A
Material : Aluminium Extrusion
